Variant C

Variant C

The Variant C frame (plate) is designed for athletes who execute double-rotation jumps, as well as sit-spins and camel-spins.

“Click-action” mechanism that allows for heightened precision with truck-adjustment, maintaining their orientation even during more complex movements and skating.
Frame derived from a drawn Aluminum bar, and completely created using computer numerical control (CNC) machining.
13 mm king-pins inclined to 16° with traditional trim.
Natural rubber cushions available in 4 hardnesses (colors).
Aluminum trucks with 7mm steel axles and adjustable pivot pin.
Toestop and tool kit included.

Roll-Line does not sell directly to the public; to complete your purchase, please refer to an official reseller.

90 - 100 - 110 - 120 - 130 - 140 - 150 - 160 - 170 - 180 - 190

Bases

Aluminum

Cushions

Natural rubber with click action

Trucks

Aluminum - 7mm steel axles

Toestops

Grey

Comparison chart

	MIRAGE	VARIANT F	VARIANT M	VARIANT C	MISTRAL	MATRIX	EVO
SIZES	100 - 110 - 120 - 130 - 140 - 150 - 160 - 170	90 - 100 - 110 - 120 - 130 - 140 - 150 - 160 - 170 - 180 - 190	90 - 100 - 110 - 120 - 130 - 140 - 150 - 160 - 170 - 180 - 190	90 - 100 - 110 - 120 - 130 - 140 - 150 - 160 - 170 - 180 - 190	120 - 130 - 140 - 150 - 160 - 170 - 180 - 190 - 200 - 210	140 - 150 - 160 - 170 - 180	130 - 135 - 140 - 145 - 150 - 155 - 160 - 165 - 170 - 175 - 180 - 190
TOESTOP	White	Grey	Grey	Grey	Ambra	Ambra	Ambra
BASE	Shockproof fiber	Aluminum	Aluminum	Aluminum	Aluminum	Ergal	Ergal
RIGHT/LEFT FOOT	-	-	-	-	Yes	Yes	Yes
TRUCKS	Fiber with steel axles	Fiber with steel axles	Aluminum with steel axles	Aluminum with steel axles	Aluminum with steel axles	Aluminum with steel axles	Aluminum with steel axles
CUSHIONS	Rubber	Natural rubber	Natural rubber	Natural rubber with click action	Elastomer with click action	Elastomer with click action	Elastomer with click action
LOWERED TRIM	-	-	-	-	-	Yes	Yes
ANGLES	-	16°	16°	16°	16°	16°	18° front - 15° rear

Mounting references

Edea

PLATE SIZE	90		100			110			120		130		140		150		160		170		180		190
BOOT SIZE	27	28	29	30	31	31½	32	33	34	34½	35	36	37	37½	38	39	40	40½	41	42	42½	43	44	45
BOOT SIZE	185	190	195	200	205	210	215	220	225	230	235	240	245	250	255	260	265	270	275	280	285	290	295	300

Risport

PLATE SIZE	90			100			110		120		130		140		150		160		170		180		190
BOOT SIZE	26	27	28	29	30	31	31½	32	33	34	34½	35	36	37	37½	38	39	40	40½	41	42	42½	43	44
BOOT SIZE	180	185	190	195	200	205	210	215	220	225	230	235	240	245	250	255	260	265	270	275	280	285	290	295

BELATI

PLATE SIZE	90			100		110	120		130	140		150	160		170	180		190
BOOT SIZE	27	28	29	30	31	32	33	34	35	36	37	38	39	40	41	42	43	44

INDICATIVE REFERENCES

Roll-Line declines all responsibility for any non-conformities due to production variations by the manufacturers.
For greater precision, download the frame shapes HERE.

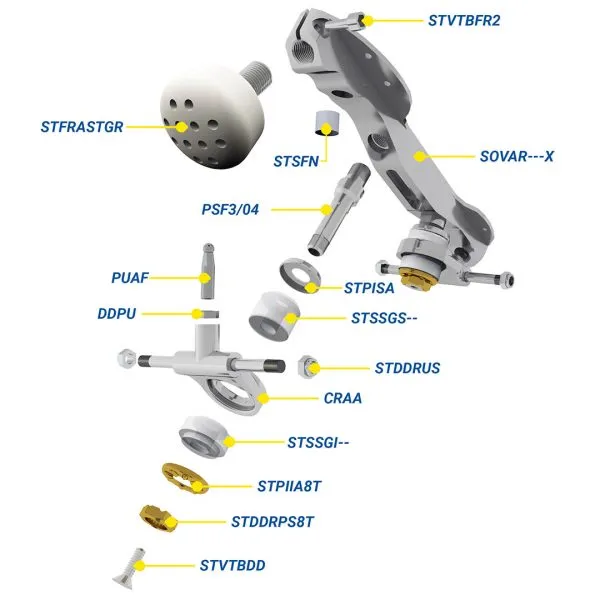

Components

SOVAR—X* (1 piece kit)
Variant frame

STVTBFR2 (2 pieces kit)
Toe stop locking screw

STFRASTGR (2 pieces kit)
White toe stop

STSFN (4 pieces kit)
Nylon pivot pin cup

PSF3/04 (1 piece kit)
13mm regular 8 click kingpin

STPISA (4 pieces kit)
Standard upper cushion cup

STSSGS–** (4 pieces kit)
Upper rubber cushion

CRAA (1 piece kit)
Standard truck with steel axles

DDPU (1 piece kit)
Pivot pin nut

PUAF (1 piece kit)
Steel pivot pin

STDDRUS (8 pieces kit)
Standard wheels nut 7mm

STSSEI–2** (4 pieces kit)
Lower rubber cushion

STPIIA8T (Kit 4 pieces)
8 click lower cushion cup

STDDRPS8T (Kit 4 pieces)
8 click kingpin nut

STVTBDD (4 pieces kit)
Kingpin screw

* Instead of — indicate the plate size (e.g.: 150)
** Instead of — indicate the color of the cushion (e.g. GREEN)

Roll-Line does not sell directly to the public; to complete your purchase, please refer to an official reseller.

Technical features

Cushion Hardness Guide

Each plate size comes furnished with a specific cushion hardness.
If the needs of the athlete differ, a replacement cushion kit can be purchased separately.
Please consult the guide to select the most appropriate cushion.

Color of the Cushion	White	Green	Ambra	Yellow
REFERENCE WEIGHT	Up to 25kg	From 25 to 35 kg	From 35 to 50 kg	Over 50kg
FRAME SIZE	90 - 100 - 110	120 - 130	140 - 150	160 - 170 - 180 - 190

FURTHER RECOMMENDATIONS
It is preferable not to replace the cushions too close to competitions (i.e, within 1 week).
The replacement of cushions varies the action of the trucks which necessitates a proper adjustment time.

For additional information on how to replace cushions, please see the video tutorial.

Adjustments and maintenance

Truck Settings

Turn the kingpin nut with the tube wrench in a clockwise direction to tighten the cushions, or in a counter-clockwise direction to loosen them.
Starting at the reference point of 0 indicated on the click cup, it is possible to adjust the nut marked by the numbers 1-8, in order to find the optimal personal setting.
Be careful to respect the utilizable limits when making adjustments to avoid malfunctions and/or damage.

Pivot pin adjustment

It is important to ensure that the pivot pin is inserted into its cup whit a light pressure. Loosen the locking nut using a 13mm wrench.
Loosen or tighten the pivot pin using a 6mm hex wrench.
Ensure that the pivot pin is inserted into its cup with a light pressure. Tighten the pivot nut.

Control and maintenance

It is advised to verify the condition of your equipment at every use.

In particular, it is advised to check:

the plate is securely attached to the boot
the king-pins are securely fastened to the plate
the cushions are in good condition (not cracking, chipping, etc.)
the pivot pin is inserted into its bush with a light pressure
the wheels and lock nuts are in good condition
the proper roll of the bearings
the toestops are in good condition, well-positioned, and clean

FURTHER RECOMMENDATIONS
It is preferable not to act on trucks close to competitions (less than 1 week).
Changing the setting involves a variation in the behavior of the skates which requires a suitable adaptation time.

For more info on how to properly adjust the suspension, please watch the video tutorial.
