Agile

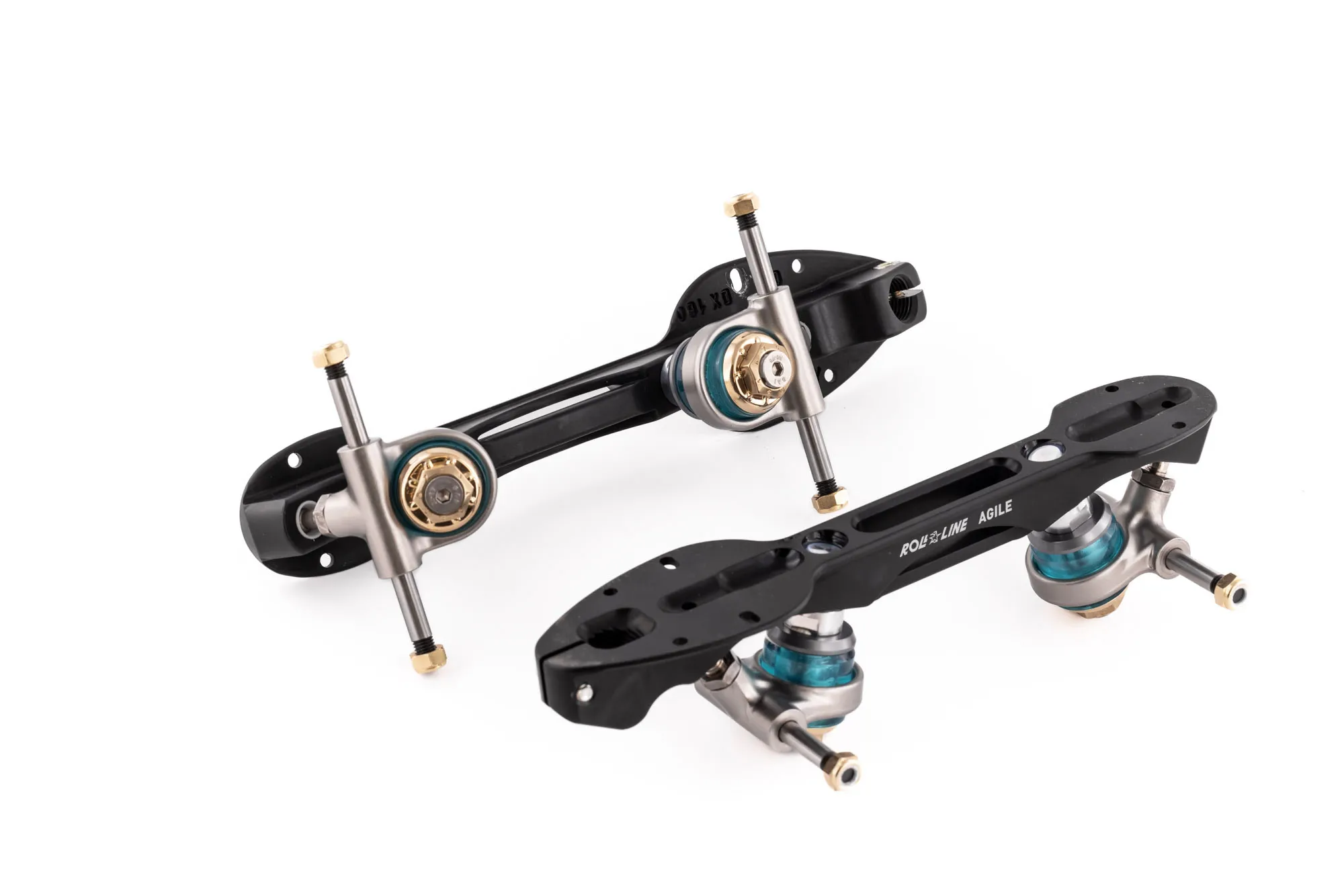

Agile is the revolutionary frame (plate) designed to best meet the needs of the most sophisticated hockey players.

The reduced wheelbase is the big news that gives a never seen before agility, for quick and effective changes of direction.
Trim lowered by 5mm which considerably lowers the center of gravity for an increased stability.
Differentiation between left and right frame, which facilitates.
Click-action” mechanism that allows for heightened precision with truck-adjustment.
Frame derived from a drawn Aluminum bar, and completely created using computer numerical control (CNC) machining.
13mm king-pins inclined to 16° with lowered trim.
Elastomer cushions available in 5 hardnesses (colors).
Aluminum trucks with 7mm steel axles and adjustable pivot pin.

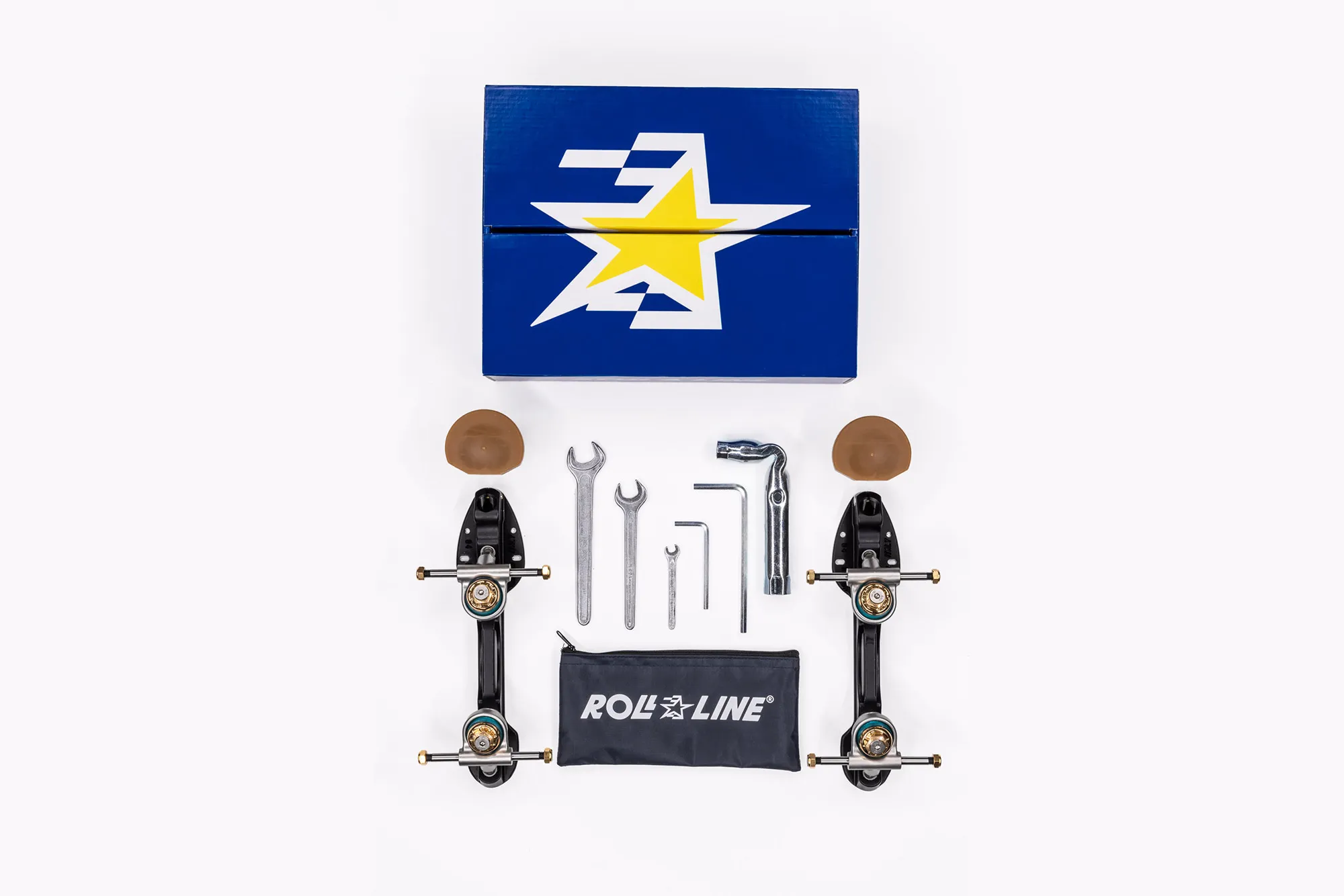

Hokey toestop and tool kit included.

Roll-Line does not sell directly to the public; to complete your purchase, please refer to an official reseller.

SIZES	130 - 140 - 150 - 160 - 170
INSOLES	Right/left aluminum
CUSHIONS	Elastomer with click action and lowered trim
TRUCKS	Aluminum - 7 mm steel axles and lowered suspension
TOESTOPS	Hockey Ambra

Mounting references

Agile

FRAME SIZE	130		140		150		160		170
BOOT SIZE	37	38	39	40	41	42	43	44	45	46	47

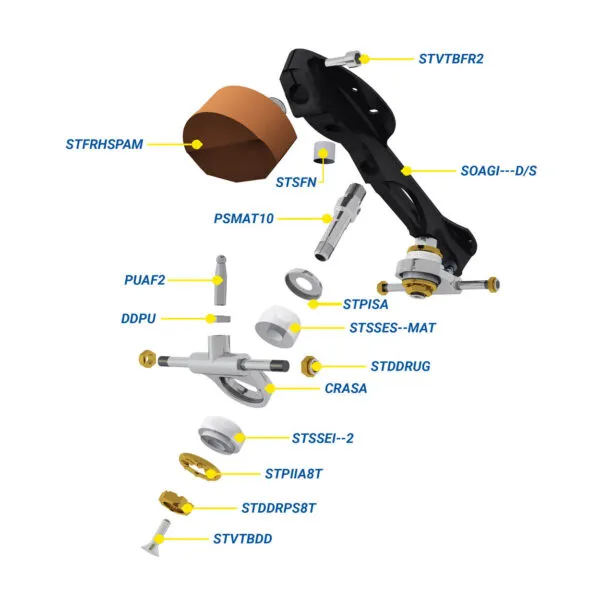

Components

SOAGI—*D/S*** (Kit 1 piece)
Nimble insole

STVTBFR2 (2 pieces kit)
Toe stop locking screw

STFRHSPAM (Kit 2 pieces)
Amber hockey brake set

STSFN (4 pieces kit)
Nylon pivot pin cup

PSMAT10 (1 piece kit)
13mm lowered 8 click kingpin (1 piece kit)

STPISA (4 pieces kit)
Standard upper cushion cup

STSSES–MAT** (Kit 4 pieces)
Upper elastomer cushion Evo/Matrix

CRASA (1 piece kit)
Lowered truck with steel axles

DDPU (1 piece kit)
Pivot pin nut

PUAF2 (1 piece kit)
Short steel pivot pin

STDDRUG (8 pieces kit)
Gold wheels nut 7mm

STSSEI–2** (4-piece kit)
Lower elastomer cushion - step

STPIIA8T (Kit 4 pieces)
8 click lower cushion cup

STDDRPS8T (Kit 4 pieces)
8 click kingpin nut

STVTBDD (4 pieces kit)
Kingpin screw

* Instead of — indicate the plate size (e.g.: 150)
** Instead of — indicate the color of the cushion (e.g. GREEN)

Roll-Line does not sell directly to the public; to complete your purchase, please refer to an official reseller.

Technical features

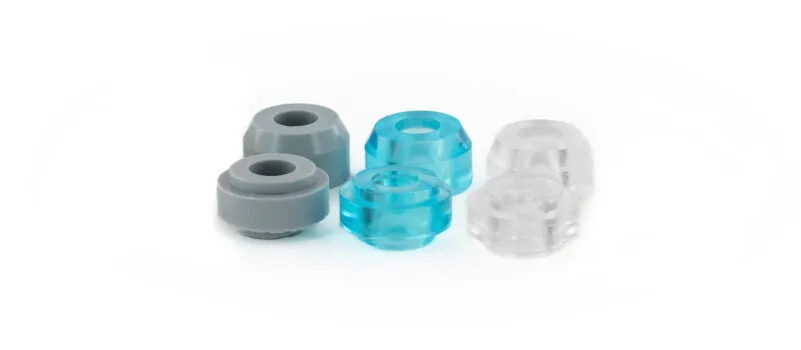

Cushion Hardness Guide

Each plate size comes furnished with a specific cushion hardness.
If the needs of the athlete differ, a replacement cushion kit can be purchased separately.
Please consult the guide to select the most appropriate cushion.

130	140	150	160	170
GREY	SKY BLUE		TRANSPARENT

FURTHER RECOMMENDATIONS
It is preferable not to replace the cushions too close to competitions (i.e, within 1 week).
The replacement of cushions varies the action of the trucks which necessitates a proper adjustment time.

For additional information on how to replace cushions, please see the video tutorial.

Wheelbase

The Agile frame, while maintaining the same total length compared to the other Roll-Line® frames, has a wheelbase of one measure smaller.
The reduced distance between the wheels allows for an agile skate without having to choose an excessively short frame size.
The unchanged total length ensures that the position of the toe stop remains unchanged without compromising its use both during stops and when restarting from standstill.
It is recommended to use the same frame size used previously.

Right and left bases

The professional Roll Line® plates are characterized by an interior inclination of the toestops of 4°.

This particular setting offers a series of advantages, namely:

better positioning of the toestop in the phase of takeoff on toe-assisted jumps
better control in the centering of spins
optimization in pushing movements

Lowered trim

The Roll-Line® frames for high-level free skating are lowered by 5mm.

The lowered center of gravity is advantageous in:

the landing of jumps
pressing edges
the execution of edges and movements that require heightened levels of maneuverability

Adjustments and maintenance

Truck Settings

Turn the kingpin nut with the tube wrench in a clockwise direction to tighten the cushions, or in a counter-clockwise direction to loosen them.
Starting at the reference point of 0 indicated on the click cup, it is possible to adjust the nut marked by the numbers 1-8, in order to find the optimal personal setting.
Be careful to respect the utilizable limits when making adjustments to avoid malfunctions and/or damage.

Pivot pin adjustment

It is important to ensure that the pivot pin is inserted into its cup whit a light pressure. Loosen the locking nut using a 13mm wrench.
Loosen or tighten the pivot pin using a 6mm hex wrench.
Ensure that the pivot pin is inserted into its cup with a light pressure. Tighten the pivot nut.

Control and maintenance

It is advised to verify the condition of your equipment at every use.

In particular, it is advised to check:

the plate is securely attached to the boot
the king-pins are securely fastened to the plate
the cushions are in good condition (not cracking, chipping, etc.)
the pivot pin is inserted into its bush with a light pressure
the wheels and lock nuts are in good condition
the proper roll of the bearings
the toestops are in good condition, well-positioned, and clean

FURTHER RECOMMENDATIONS
It is preferable not to act on trucks close to competitions (less than 1 week).
Changing the setting involves a variation in the behavior of the skates which requires a suitable adaptation time.

For more info on how to properly adjust the suspension, please watch the video tutorial.
