The frame (plate) Giotto is the plate of excellence designed expressly for the Rims.

  • The 16° inclination of the king-pins render the Giotto the perfect frame for the execution of excellent figures.
  • It comes furnished with a set of elastomer cushions, plus a second (extra) set of elastomer cushions for the execution of Figures.
  • “Click-action” mechanism that allows for heightened precision with truck-adjustment, maintaining their orientation even during more complex movements and skating.
  • Frame derived from a drawn Aluminum bar, and completely created using computer numerical control (CNC) machining.
  • 13 mm king-pins inclined to 16° with traditional trim.
  • Aluminum trucks with 7mm steel axles and adjustable pivot pin.
  • Tool kit included.
Roll-Line does not sell directly to the public; to complete your purchase, please refer to an official reseller.
Sizes120 - 130 - 140 - 150 - 160 - 170 - 180
BasesAluminum
Mounted suspensionElastomer (Figures) with click action
Extra suspensionElastomer (Figures) with click action
TrucksAluminum - 7 mm steel axles

Edea

FRAME SIZE120130140150160170180
BOOT SIZE3434½35363737½38394040½414242½43
225230235240245250255260265270275280285290

Risport

FRAME SIZE120130140150160170180
BOOT SIZE333434½35363737½38394040½414242½
220225230235240245250255260265270275280285

Belati

FRAME SIZE120130140150160170180
BOOT SIZE3334353637383940414243
INDICATIVE REFERENCES
Roll-Line declines all responsibility for any non-conformities due to production variations by the manufacturers.
For greater precision, download the frame shapes HERE.

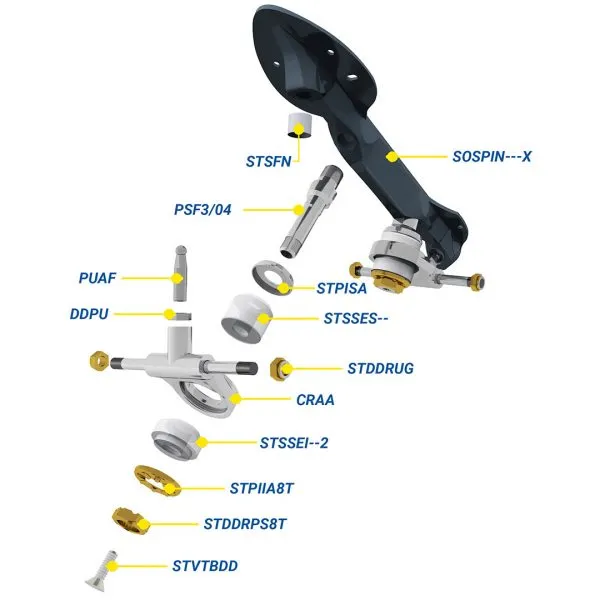

SOSPIN—*X (Kit 1 pezzo)
Spin frame

STSFN (4 pieces kit)
Nylon pivot pin cup

PSF3/04 (1 piece kit)
13mm regular 8 click kingpin

STPISA (4 pieces kit)
Standard upper cushion cup

STSSES–** (Kit 4 pezzi)
Upper elastomer cushion

CRAA (1 piece kit)
Standard truck with steel axles

DDPU (1 piece kit)
Pivot pin nut

PUAF (1 piece kit)
Steel pivot pin

STDDRUG (8 pieces kit)
Gold wheels nut 7mm

STSSEI–2 (4-piece kit)
Lower elastomer cushion - step

STPIIA8T (Kit 4 pieces)
8 click lower cushion cup

STDDRPS8T (Kit 4 pieces)
8 click kingpin nut

STVTBDD (4 pieces kit)
Kingpin screw

* Instead of — indicate the plate size (e.g.: 150)
** Instead of — indicate the color of the cushion (e.g. GREEN)

Roll-Line does not sell directly to the public; to complete your purchase, please refer to an official reseller.

Cushion Hardness Guide

Each plate size comes furnished with a specific cushion hardness.

Figures and Loops plates come with an extra add-on set.

Specifically, the Giotto spare cushions are in Elastomer and are as follows:

120130140150160170180
VERDEGREYAZZURROTRASPARENTE

FURTHER RECOMMENDATIONS
It is preferable not to replace the cushions too close to competitions (i.e, within 1 week).
The replacement of cushions varies the action of the trucks which necessitates a proper adjustment time.

For additional information on how to replace cushions, please see the video tutorial.

Truck Settings

Turn the kingpin nut with the tube wrench in a clockwise direction to tighten the cushions, or in a counter-clockwise direction to loosen them.
Starting at the reference point of 0 indicated on the click cup, it is possible to adjust the nut marked by the numbers 1-8, in order to find the optimal personal setting.
Be careful to respect the utilizable limits when making adjustments to avoid malfunctions and/or damage.

Pivot pin adjustment

It is important to ensure that the pivot pin is inserted into its cup whit a light pressure. Loosen the locking nut using a 13mm wrench.
Loosen or tighten the pivot pin using a 6mm hex wrench.
Ensure that the pivot pin is inserted into its cup with a light pressure. Tighten the pivot nut.

Control and maintenance

It is advised to verify the condition of your equipment at every use.

In particular, it is advised to check:

  • the plate is securely attached to the boot
  • the king-pins are securely fastened to the plate
  • the cushions are in good condition (not cracking, chipping, etc.)
  • the pivot pin is inserted into its bush with a light pressure
  • the wheels and lock nuts are in good condition
  • the proper roll of the bearings
  • the toestops are in good condition, well-positioned, and clean

FURTHER RECOMMENDATIONS
It is preferable not to act on trucks close to competitions (less than 1 week).
Changing the setting involves a variation in the behavior of the skates which requires a suitable adaptation time.

For more info on how to properly adjust the suspension, please watch the video tutorial.
